GS Engineering Works, headquartered in Coimbatore, Tamil Nadu, was established by the visionary entrepreneur Leela Ramesh in 2015. Since our inception, we have been committed to revolutionizing the construction industry with our s ...Read More

GS Engineering Works

GS Engineering Works, headquartered in Coimbatore, Tamil Nadu, was established by the visionary entrepreneur Leela Ramesh in 2015. Since our inception, we have been committed to revolutionizi... read more

Our Products

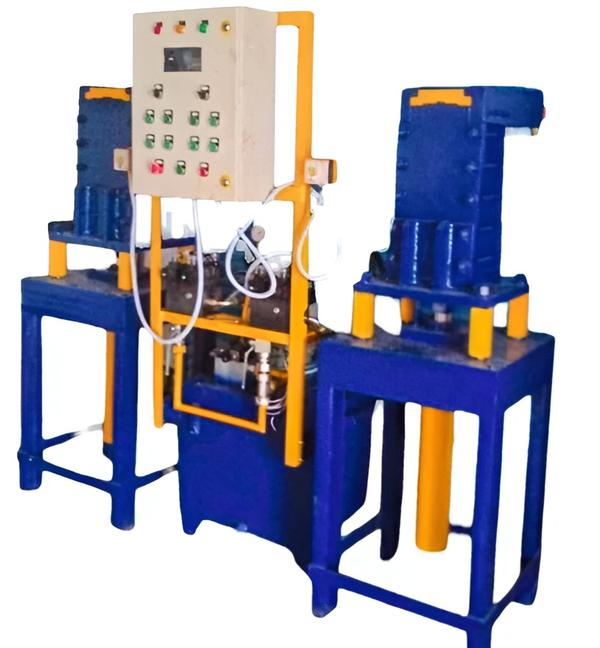

Automation Grade AutomaticMaterial Mild SteelProduct Type Interlocking Block Making MachineColor Blue (Base)Material Grade EN24Voltage 415vFrequency 50HzPower 5KCapacity 5000 Block Per DayWeight 2000KgThis Machine Has Two Separate Working Stations Powered By 10 Hp Hydraulic Power Pack.· Each Station(Mold) Has The Separate Hand Operated Values To Activate Pressing And Lid Cylinders.· By Proper Timing Of The Cylinder Operations Through A Valve, Maximum Production Can Be Achieved.Automatic Model:· The Automatic Machine Can Be Easily Operated By Simple Pressing Of A Push Button For Each Cycle Of The Mold.· The Cycle Logic Is Very Well Designed With A Plc Which Will Operate The First Station And Subsequently Next Station Will Start Operating On Its Own Without Any Time Delay.

Interlocking Mud Block Making Machine

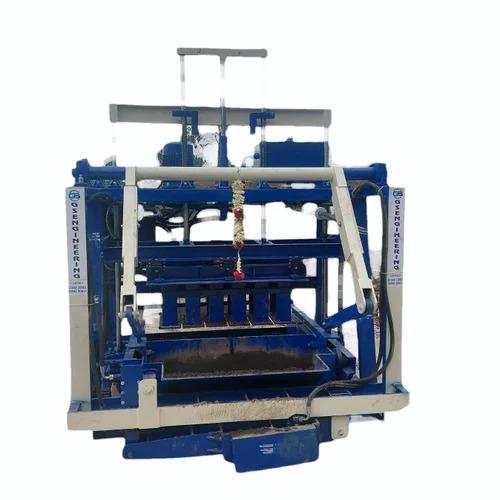

Automation Grade Semi AutomaticProduction Capacity (per 8-hr Shift) 2501-5000 BlocksBrick Type Curbstone, Solid, HollowProduction Capacity 1000 bricks/hrMachine Type Egg LayingBlock Type Hollow Block, Solid BlockMethod hydraulic And VibrationPower (HP) 5.1 - 10 HPPower 10 kWPhase Three PhasePressure (Tonnage) Up to 40 TonMoulding Area (mm) 1060x600 mmPower Source ElectricBrick Size 400x200x200 mmHeavy Duty Concrete Block Making Machine. This Is Heavy Duty Model An Egg Laying Type Hydraulic Operated Concrete Block Making Machine On Wheels, Which Will Lay Block On The Concrete Floor And Move To The Next Laying. Any Type Of Concrete Blocks Can Be Produced With Consistent Quality , High Strength And Pressure With Accurate Sizes By Fixing Different Types Of Concrete Mould And Ram In The Machine. Technical Specifications Triple Vibrator Total Power 9 H.P (3 Phase 415 V) Hydraulic Motor 5 H.P 1440 Rpm Mould Vibrator Motor 2 H.P 2880 Rpm Ram Vibrator Motor 1 H.P 2880 Rpm Travel Motor 1 H.P 1440 RpAdditional Information:Delivery Time: 25 Days

Concrete Solid Block Making Machine

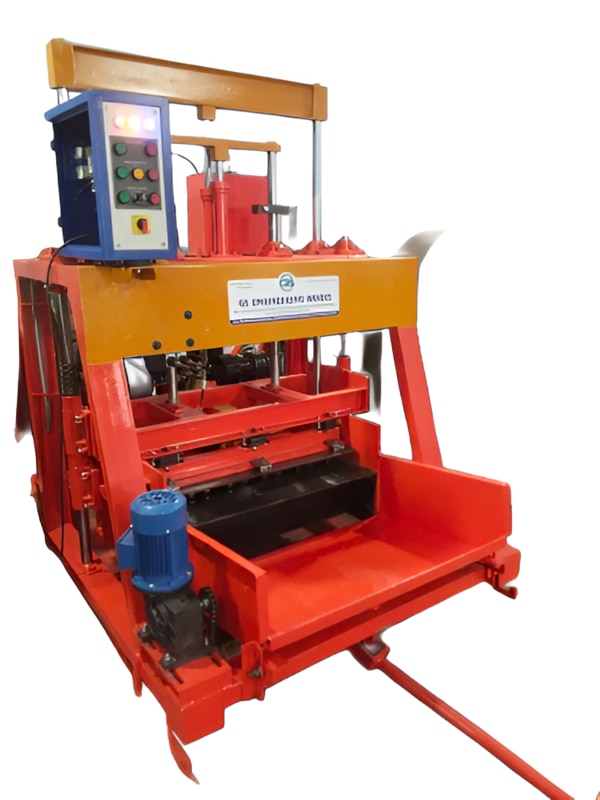

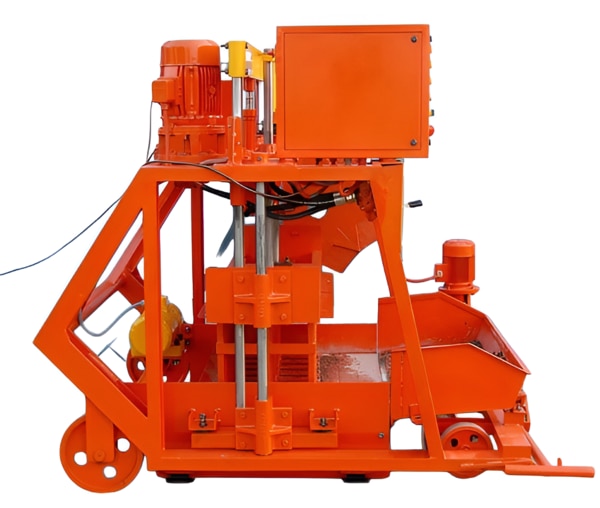

Automation Grade ManualProduct Code M860Color Orange (Base)Product Type Hydraulic Concrete Hollow Block MachineMaterial Mild SteelMaterial Grade Mild steelPhase 3 PhaseVoltage 415 VFrequency 50HzHeavy Duty Concrete Block Making Machine. This Is Heavy Duty Model An Egg Laying Type Hydraulic Operated Concrete Block Making Machine On Wheels, Which Will Lay Block On The Concrete Floor And Move To The Next Laying. Any Type Of Concrete Blocks Can Be Produced With Consistent Quality , High Strength And Pressure With Accurate Sizes By Fixing Different Types Of Concrete Mould And Ram In The Machine. Technical Specifications 105 M - 430 Model Triple Vibrator Total Power 6 H.P (3 Phase 415 V) Hydraulic Motor 3 H.P 1440 Rpm Mould Vibrator Motor 2 H.P 2880 Rpm Travel Motor 1 H.P 1440 Rpm Machine Weight 1600 Kg (Approx ) Operating Pressure 140 Kgcm³ Quality Features Heavy : Channels, Plates, Rods , Hydraulic System , Gear Box, Rubber Fittings, Specialized Electric System , Branded Motors , Bolts , Nuts And All Fittings With Shutter Vibrator And Pressing System. Heavy Moulds Using 10 & 12 Mm Plates With Hard Crome Electro Plated, Square Pipes With Accurate Sizes. Dimensions 1750 X 1325 X 1800 Mm Production Capacity 50 – 60 Stroke Hour 400 X 200 X 100 Mm 4 Block Stroke 400 X 200 X 150 Mm 3 Block Stroke 400 X 200 X 200 Mm 2 Block StrokeAdditional Information:Delivery Time: 10 days

Hydraulic Solid Block Making Machine

View All Products

about GS Engineering Works

about our organization

GS Engineering Works, headquartered in Coimbatore, Tamil Nadu, was established by the visionary entrepreneur Leela Ramesh in 2015. Since our inception, we have been committed to revolutionizing the construction industry with our s...Read More

3
Products Available

lATEST NEWS

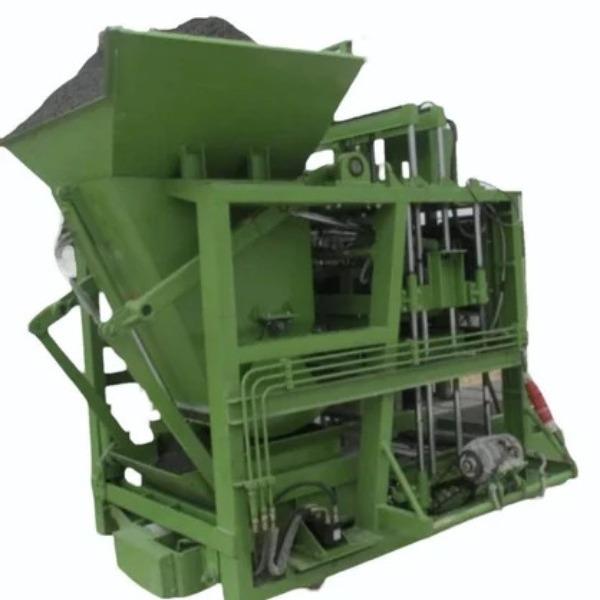

Leading manufacturers Hollow Solid Block Making Ma

Hollow Solid Block Making Machine HDM -800

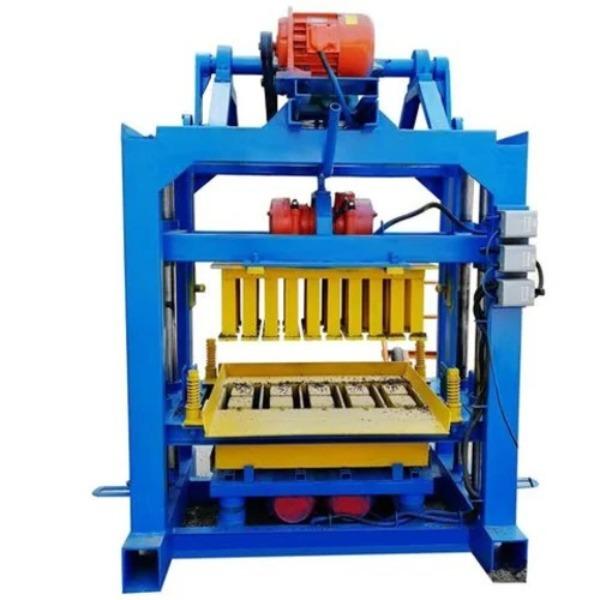

Leading manufacturers Cement Bricks Making Machine

Cement Bricks Making Machine manufacturers coimbatore

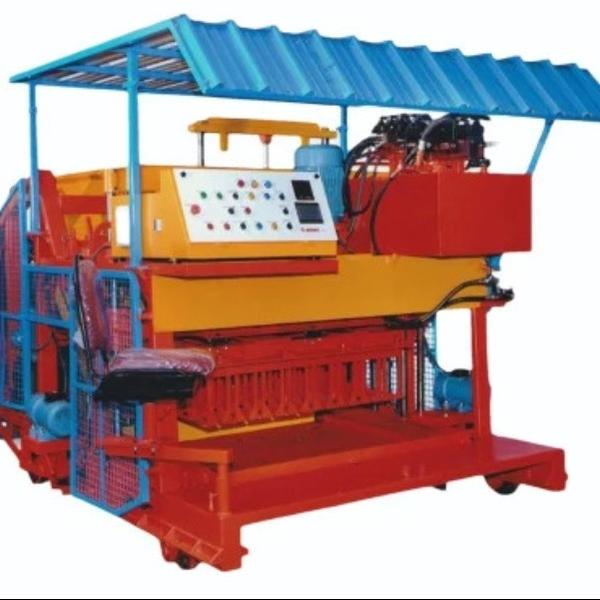

Leading manufacturers Fully Automatic Hollow Concr

Fully Automatic Hollow Concrete Block Making Machine coimbatore
